In September 2013 RDL was asked to supply and install a garden pond liner into an existing natural pond which was no longer holding water due to ground seepage. The existing shape of the 1,000m2 pond was maintained.
Working with the original pond design, RDL worked with a team of landscapers to remove all stones, rocks and the overgrown aquatic vegetation in the pond before installing the garden pond liner and protective underlay.
Pond Refurbished with 1mm Epalyn EP Pond Liner
Two large pond liners were joined together with a narrower strip running under the single track bridge. Epalyn EP 1mm pond liner was the chosen membrane to use as its superior flexibility and strength are ideal for this size project.
Geotextile protective underlay was installed beneath the Epalyn EP garden pond liner to protect against damage from sharp stones or objects within the ground.
The membrane was installed and held in position by running up into an anchor trench which was dug around the ponds perimeter. A section of the pond ran under a single track road bridge. The lining of the 1000m2 pond was completed within two weeks after the ground works had been completed.

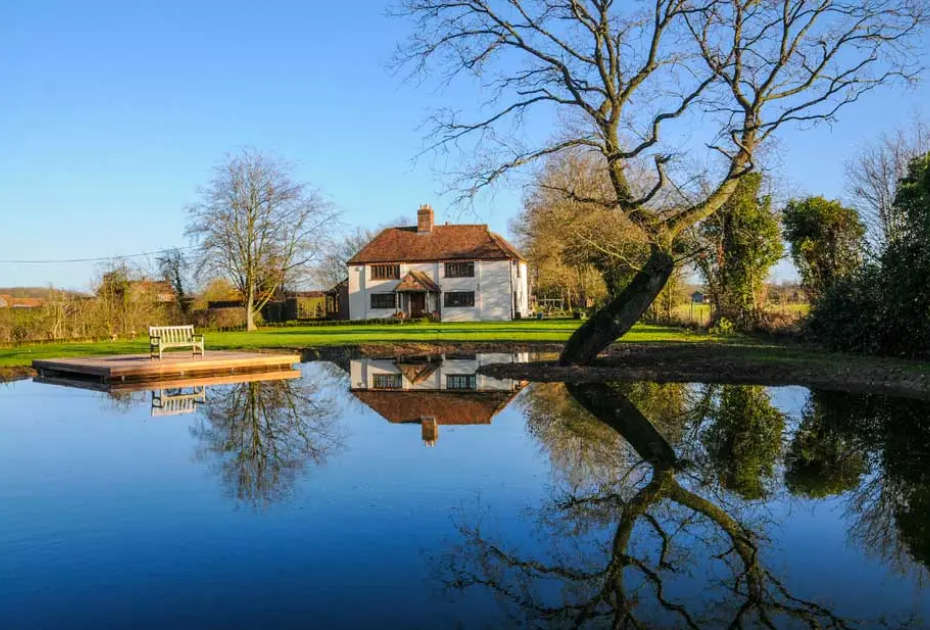

The Epalyn EP garden pond liner was trimmed and secured in place using an anchor trench before refilling this extra large size pond.
